Thunder Creek FST Refueling Fuel Trailers

Name: Thunder Creek FST Refueling Fuel Trailers
SKU: THCR-FST500
Availability: InStock

SKU: THCR-FST500

$13,600.00 – $14,900.00

Shipping: $ 1800

– Three models 500, 750 and 900 gallon
– DOT 406 Spec for Combustibles/Flammables
– Base Drawers: (1) 3″ Deep, (1) 6″ Deep w Locks
– Front 30″ Cabinet 30″L x 42″ W x 54″ H
– DEF Tank Optional
– Optional Compressor, Light Kit, and more
– USE GETQUOTE: Options, Questions, Discounts

Description

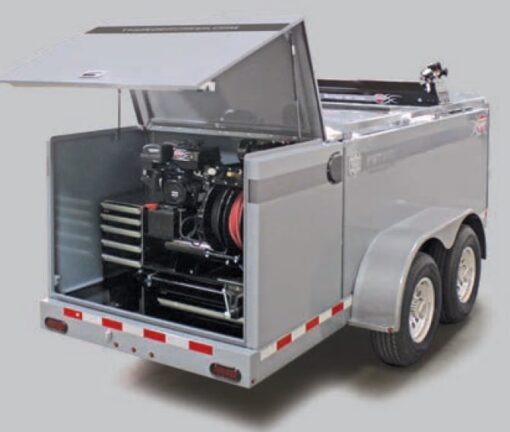

Thunder Creek Refueling Fuel Trailers

Thunder Creek Fuel Trailers are a super high grade line of fuel trailers from Iowa. Available in 500, 750 and 990 gallon models. Order with your choice of features including DEF tanks, generators, welders, etc. Build-to-order, approximate lead times are industry standard, about a month or so. Contact Equipmentland for a quotation to meet your specific need.

FST500
Tank: 500 gallon / 7 gauge / one baffle
Torsion Axles / Hubs: dual 5,000 lbs. / 6 bolt hubs
L / W / H*: 13’ / 7’ / 6’
Empty Weight / GVWR: 3,390 lbs. / 10,000 lbs.

FST750
Tank: 750 gallon / 7 gauge / three baffles
Torsion Axles / Hubs: dual 6,000 lbs. / 8 bolt hubs
L / W / H*: 15’ / 7’ / 6’
Empty Weight / GVWR: 3,830 lbs. / 12,000 lbs.

FST990
Tank: 990 gallon / 7 gauge / four baffles
Torsion Axles / Hubs: dual 7,000 lbs. / 8 bolt hubs
L / W / H*: 17’ / 7’ / 6’
Empty Weight / GVWR: 4,250 lbs. / 14,000 lbs.

TRAILER
• 7.5” x 1/4” Formed Frame 3 Year Frame Warranty
• Dexter® Torsion Axles and EZ Lube Hubs
• Electric Brakes with Breakaway Safety System
• 16” 10-Ply Tires 235 / 80R16 with Steel Wheels
• 7,000 lb. Enclosed Jack and Safety Tow Chains
• DOT Placards, Reflective Tape and LED Lights
• Replaceable, Bolt-on Fenders
• Dual Coat Gray Polyurethane Paint
• Replaceable Diamond Plate Rock Guard
on Fenders and Frame
• Adjustable Height 2 5/16” Ball Hitch
• Wiring Wrapped in Protective Braid

FRONT ENCLOSURE 49 cu. ft.
• Positive Pressure Dust Control System
• Automatic Interior LED Lighting
• 12V Deep Cycle Marine Battery
• Lockable Hatch-Style, Weather-Sealed
Doors with Chrome Handle
• Fire Extinguisher

PUMP ENCLOSURE 21 cu. ft.
• 25 GPM Industrial Grade 12V Pump
• 12V Deep Cycle Marine Battery, 12’ Power Cables
• 35’ x 1” Retracting Hose Reel, Auto-Trip Nozzle
• 10 Micron Fuel Filter
• Positive Pressure Dust Control System
• Automatic Interior LED Lighting
• Lockable Hatch-Style, Weather-Sealed
Doors with Chrome Handle

OPTIONS
SIGNATURE PACKAGE
• 40 GPM Gas Powered Pump
• 100 Gallon DEF Tank, Pump and 35’ Reel
• Aluminum Wheels
• Field Max Tires
• Solar Battery Charger

A LA CARTE OPTIONS
• 4 Micron Fuel Filter System Upgrade
• Digital Fuel Meter
• 50’ Fuel Hose Reel Upgrade
• Static Discharge Reel
• Digital DEF Meter
• 50’ DEF Hose Reel Upgrade
• 110V DEF Heater
• Custom Color
• Gear Drive 8 GPM Pump Upgrade for Oil Tank
• Spare Tire Kit with Standard or Field Max Tires
• Spill Containment Kit
• Rear Utility Box
• Five Drawer Tool Chest for Utility Box
• Can + Towel Holder
• 35 lbs. Grease Kit
• Two Drawer Low Boy Tool Chest
• Work Bench with Vise
• Welder+Comp+Gen with 50’ Air/Elec. Combo Reel
• Comp+Gen with 50’ Air/Elec. Combo Reel
• Air Compressor with 50’ Air Hose Reel
• WorkSight Light Tower
• 30 Gallon Auxiliary Oil Tank and 3 GPM Pump
• Five Drawer Tool Chest for Front Enclosure
• Electric / Hydraulic Jack
• Stainless Steel Fender + Trim Upgrade

Transport Bulk Diesel Without A HAZMAT
Thunder Creek’s Multi-Tank Trailers do not require the driver to carry a HAZMAT endorsement. In many cases, a CDL is not required either. Thunder Creek FST trailers are built to DOT 406 Specification for combustibles OR flammables. Thunder creek designed them to meet this specific need and ease the industry-wide burden of finding qualified employees with the necessary credentials. Prices are FOB Pella, Iowa.
