Remlinger Hydraulic 60 in. Rock Picker – RP-500

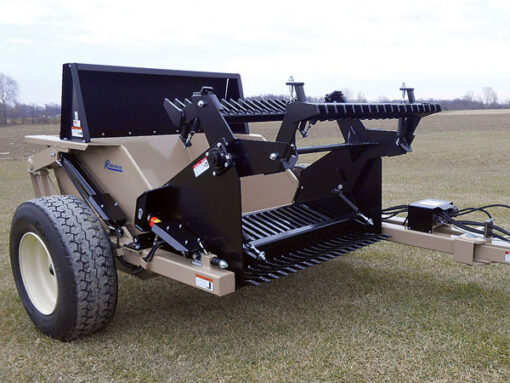

The Remlinger R-500 Rock Picker

Pick rocks from your field with this tow-behind Rockpicker. Remlinger Rock pickers hydraulically process rocks from 1.5 inches to 24″ without the use of your PTO. Hydraulic controls allow you to set the height of the scoop, the speed of the tined wheels, and the swing of the hitch. Pick rocks with the rockpicker offset behind the track of the tractor using your standard implement hitch, then hydraulically adjust to tow directly behind the tractor. All hoses, valve and switch box are provided – except hose hookups. Two remotes are required, 12 GPM minimum @ 1500 PSI (2,000 PSI relief is built in). Made in USA. This Rockpicker is a proven workhorse leading the industry. One year manufacturer’s warranty on workmanship and materials.

Series 500-20 Rock Picker Specifications

Frame: Welded Construction using Heavy Plate and 5” Square Tubing
Hopper: Constructed with Grated Bottom and 1/4” Steel Gusseted
Back Rock: Guard Heavy 1/2” Thick Rubber Deflector
Hopper Size: 2-1/4” Cubic Yards
Tine Scoop: Specially Designed, Hard Surfaced Contoured Tine
Bar Reel: Large Diameter w Hard Surfaced Teeth, Protected by HD Spring Cushion Trip Action
Swing Hitch: Hydraulic Controlled From Tractor
Implement Hitch: Category 3 with Clevis
Hydraulics Scoop: Two 3 x 8 Cylinders
Hydraulics Swing Hitch; One 3 x 8 Cylinder
Hydraulics Hopper: Two 3-1/2 x 30” Cylinders
Reel Drive: Hydraulic Motor with Cross Over Relief Valve
Tractor Hydraulics: Two Remotes Required: 12 GPM at 1,500 PSI Minimum with Flow Control
Axle and Hub: 7,500 lbs. Hub and Axle Assembly
Tire Size: Standard 10 Ply x 12.5L x 15
Optional Tire Size: Optional 385 / 65R x 22.5 Used
Tractor HP: 60 HP Minimum
Rock Size: 1-1/2” to 24”
Picking Width: 60”
Transport Length and Width: 17’ 6” x 9’ 8”
Weight: 4,800 lbs
