Hull Welding Diesel Fuel Trailers- 2026

Hull Welding Diesel Fuel Trailers – 2026

Hull Welding Fuel Trailers offer economy with full quality. Diesel Fuel Trailers.  Made in Texas, these sturdy units feature single or double-wall tanks with baffles, mounted on sturdy trailers with a full complement of standard features and many options. 150-gallon, 350-gallon, 500-gallon. 660-gallon, 750-gallon, 1,000 gallon and more. Most units are in stock. Custom orders have a six-week lead time currently. For farm and highway use.

All HULL trailers are DOTcompliant. Our tanks are welded to each trailer so they can be towed on virtually any terrain. Tow to your work sites that require fuel transportation across highways. They can be easily towed and moved quickly to fuel machinery, vehicles, generators, and other equipment. Hull uses high-quality ASTM-A36 carbon steel in the construction of their tanks and trailers. Tanks are welded to the tow rig to prevent separation on rough terrain. Hull Welding also offers tow rigs, hose reels, tool boxes, skid tanks, diesel trailers and more. Trailers are highway certified, so you can tow to your job location and refuel conveniently and safely.

Only American made materials in all Hull Welding products. All Hull Welding tanks are “skirted and saddled” with continuous welds making the tank and trailer one unit. This construction method makes it impossible for tank and trailer to separate under demanding working locations and conditions. Hull also uses shop-built fenders, made from 14 gauge diamond plate, making them extremely strong and durable.

All Hull tanks are “skirted and saddled” with a continuous weld making the tank and trailer one unit. This construction method makes it impossible for tank and trailer to separate under demanding working locations and conditions. They also use shop-built fenders, made from 14-gauge diamond plate, making them extremely strong and durable.

Hull builds their tanks and trailers in-house, making it possible for you to customize your order with the specific fittings and ports you need. You can request decks in front or rear of the tank for an air compressor or tool boxes. Whenever possible they use the highest quality American made components one can buy.

Equipmentland Prices even Better than Buying Direct
Contact Equipmentland today for more information, formal quotes, ACH payment Invoices and more.

Common Specs:

• Tank shell and skirt: 10 Gauge mild steel
• Fill-Rite Pump
• Fuel Filter
• Fluid level gauge
• Storage areas
• Breakaway brake system
• Military-type fenders
• Safety chains
• Lights and wiring
• Industrial auto quality enamel paint and primer
• UPC undercoating standard
• 2″ fill and locking cap
  All tank trailers include a one-year warranty.

150 gallon fuel tank trailer

13 gpm pump and filter
4” channel frame
3500 lb single axle
15” 6 ply tires
Your choice in color and hitch

350 gallon fuel tank trailer

13 gpm pump and filter
4” channel frame
3500 lb tandem axle
15” 6 ply tires
Your choice in color and hitch

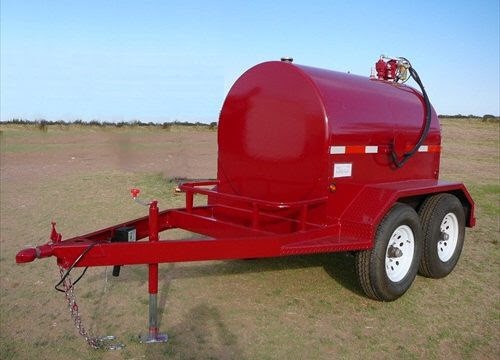

500 gallon fuel tank trailer

Tandem axle: 5,200 lb each-10,400 lb total16” tires 10 ply
20 gpm 12vdc pump
Filter
Level gauge
Bulldog Hitch 2” ball
Chains
Lights
Reflectors
Your choice of color
Capacity: 500 gallons
Trailer frame: 5” channel iron
Total length: 12’
1 brake 1 idler
Tires 4, 15” X 700
Your choice in color and hitch

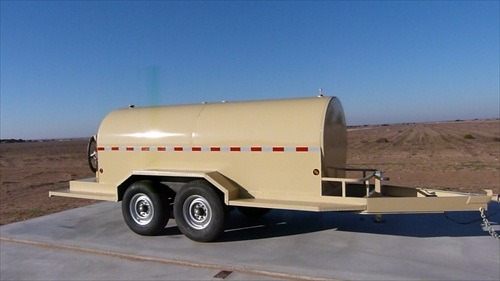

1000 gallon fuel tank trailer

Capacity: 1,000 gallons
20 gpm 12vdc pump
Fuel level gauge
7000 lb tandem axles
Brakes on both axles
16” 14 ply tires
DOT lights & reflectors
Jack
Bulldog Hitch : 2 5/16” ballChains
Break away brake system with charger
Trailer frame: 6” channel iron
Total length: 20’
Tandem axle: 7,000 Lb – 14,000 lb total
1 brake on both axles
Tires 4: 16″ 235 10 ply
Your choice in color and hitch

500/500 side-by-side fuel tank trailer

Capacity: 1,000 gal. (2) 500 gal. side-by-side
Hitch of your choice (2- 5/16)
2-20 gpm 12vdc pumps filter included.
Pumps mounted on the front
20 ft hose included
Tandem 7000 lb axles
Brakes on both axles
16” 14 ply tires (4)
6” channel frame
Lights
DOT reflectors
Jack
Safety chains
Color of your choice.
